The new Dupla 500 floor scrubber dryer is the ultimate machine for fast and effective floor cleaning in medium to large areas. At only 380mm in height and 500mm in width, the Dupla 500 is very easy to manoeuvrable and easy to operate. A articulated handle makes it even more compact for transporting or storage which makes it popular with contractors and commercial facilities.

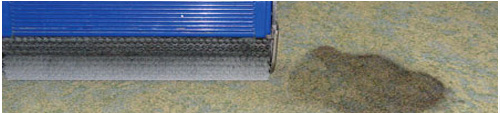

Designed with efficiency in mind, the Dupla 500 will scrub, wash and dry hard floors or short pile carpets like Flotex in a single pass. In fact a Dupla 500 is up to 7 times faster than traditional cleaning methods with better results.
Time is Money!
Mopping an area of 400m² takes approximately two hours to complete properly. With a Dupla 500 the same area can receive a deeper dryer clean in a touch over 15 minutes. This leaves the cleaner with about 1 hour and 40 minutes to clean other areas. Featuring a 500mm cleaning path, quad cylindrical brush design, 18 litre water / detergent tank, dual squeegee vacuum pick up and a 13 litre recovery tank the Dupla 500 actually scrubs, washes and dries floors in a single pass
Page 1/8
For more info, click one of buttons on the right menu
Unique Features of the Dupla

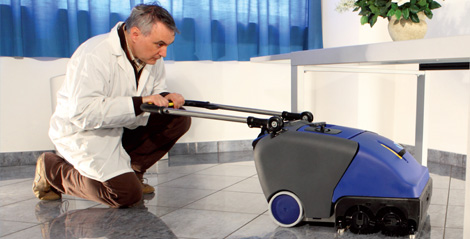

Lowering Handle
New lowering handle allows the Dupla 500 to slide under low objects to clean and reduced storage space.
Large Recovery Tank
Large 13 Lt recovery tank that lifts straight out of the machine body for easy drainage.
Extra Large Water Tank
14 Lt Lt clean water / detergent tank in the rear of the Dupla ensures less refill stopping during cleaning.
Easy Brush Replacement
Finger release brushes for even faster cleaning and maintenance times.
Handle Controls
Control the Dupla 500 with ease using the ergonomic handle controls.
Front Squeegee Adjuster
Adjust the height of the squeegees with an easy to reach switch.
Dual Vacuum Squeegees
Dual Vacuum Squeegees enabling fast trying times. Squeegee holders for easy removal.
Ultra Compact Portability
The Dupla's ultra compact size allows for portability with no compromise in efficiency. The Dupla features with a low profile 380mm height and wide 500mm cleaning width.
Page 2/8
For more info, click one of buttons on the right menu
• Areas around swimming pool can be disinfected i.e. sidewalks, entrance ways baseboards • Washes & vacuums floors and eating areas • Revitalise floor surfaces
Basketball Courts / Halls
• Scrubs main floor surface • Disinfect public areas including entranceways, foyers & hallways • Washes & vaccums floors. • Revitalise floor surfaces
Food Processing
• Cleans floor surfaces, including hard to clean tile grout • Washes & vacuums exterior sidewalks, delivery and receiving docks
Engineering / Mechanical Plants
• Cleans floor surfaces, including hard to clean tile grout • Washes & vacuums exterior sidewalks, delivery and receiving docks
Page 3/8
For more info, click one of buttonson the right menu
For more info, click one of buttonson the right menu

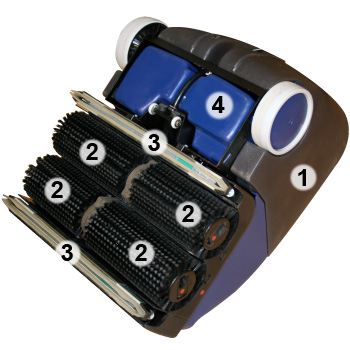

How the Dupla 500 works
At the press of a button, liquid is dispensed from the extra large 18 litre clean solution tank (1) along the full length of all the 4 rotating cylindrical agitator brushes (2). This offset brush system allows cleaning right up to the edge of walls. Simultaneously, twin vacuum squeegees (3) lift the dirt filled liquid from the floor, while drying in the one process. The dirty water is then lifted to the 13 litre central recovery tank (4), which is easily lifted from the machine and emptied.
Page 5/8
For more info, click one of buttons on the right menu
Duplex Accessories
Transport Trolley
Steam Kit
Service Program
Duplex Brushes
Fix-It
Clean-It
Page 6/8
For more info, click one of buttons on the right menu

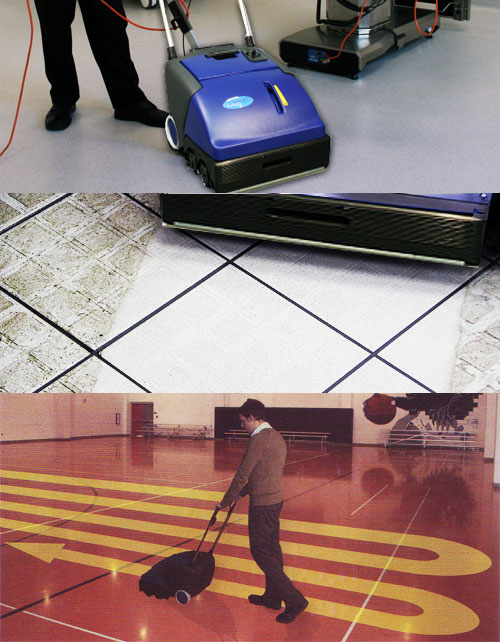

Cleaning in Action
Page 7/8
For more info, click one of buttons on the right menu
Technical Specs
Specifications
Dupla 500
Width (mm)
500 mm
Height (mm)
380 mm
Length (mm)
630 mm
Weight empty (kg) (without battery)
39 kg
Clean solution capacity (litre)
14 lt
Recovery tank capacity (litre)
13 lt
Cylindrical brush diameter (mm)
117 mm
Cylindrical brush turns (Rpm)
864 rpm
Peripheral speed of brushes (mpm)
320 mpm
Noise Level (Db)
65 Db
Voltage (V)
240
Frequency (Hz)
50
Brush Motor power (W)
600 W
Vacuum Power (W)
850 W
Theoretical working surface area (m2/h)
1500 m2/h
Page 8/8
For more info, click one of buttons on the right menu
