The Dupla 500 DC is a walk behind battery powered floor scrubber/dryer that is perfect for fast cleaning of large areas of hard floors and short pile carpets. Designed with efficiency in mind, the Dupla 500 DC simultaneously scrubs, washes and dries floors in a single pass. In fact, this efficiency combined with a large 500mm cleaning path and battery powered freedom, provides the Dupla 500 DC with a cleaning efficiency rating of 1500sqm/h.
Battery powered operation also makes the Dupla 500 DC floor scrubber ideal for cleaning in high traffic areas where power cords could be a trip hazard. A dual squeegee vacuum pick up also ensures that floors are just about left completely dry to prevent slips.
Faster, Drier & Safer Cleaning
Time is Money!
Mopping an area of 400m² takes approximately two hours to complete properly. With a Dupla Battery the same area can receive a deeper dryer clean in a touch over 15 minutes. This leaves the cleaner with about 1 hour and 40 minutes to clean other areas.
No Space goes to Waste!
Despite being compact in size, the Dupla 500 DC boasts impressive performance capacities of machines over twice its size. These include:
An extra wide 500mm cleaning path,
Large 18 litre water/detergent tank,
Dual squeegee vacuum pick up,
Lift out battery packs, and
A 13 litre recovery tank.
Page 1/8
For more info, click one of buttons on the right menu

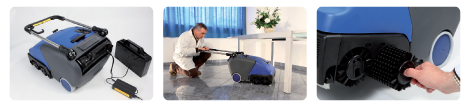

Unique Features of the Dupla

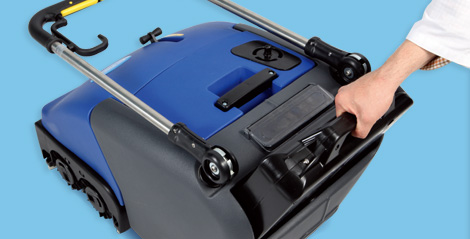

Lowering Handle
New lowering handle allows the Dupla Battery to slide under low objects to clean and reduced storage space.
Rechargeable Batteries
Save time by recharging either one or two of your Dupla Battery batteries in one go.
Removable Batteries
Easy to remove batteries for virtually uninterrupted cleaning. Stock multiple batteries for longer cleaning periods.
Easy Brush Replacement
Finger release brushes for even faster cleaning and maintenance times.
Handle Controls
Control the Dupla Battery with ease using the ergonomic handle controls.
Front Squeegee Adjuster
Adjust the height of the squeegees with an easy to reach switch.
Dual Vacuum Squeegees
Dual Vacuum Squeegees enabling fast trying times. Squeegee holders for easy removal.
Ultra Compact Portability
The Dupla's ultra compact size allows for portability with no compromise in efficiency. The Dupla features with a low profile 380mm height and wide 500mm cleaning width.
Page 2/8
For more info, click one of buttons on the right menu
Ideal Industries for Dupla Battery
With the versatility of a cylindrical brush design the Dupla Battery is suitable for cleaning all types of floors. No matter whether the floor surface is tile, vinyl, carpet, flotex. timber or stone the Dupla Battery will provide a thorough clean with 100% saving on chemicals every time.
• Areas around swimming pool can be disinfected i.e. sidewalks, entrance ways baseboards • Washes & vacuums floors and eating areas • Revitalise floor surfaces
Basketball Courts / Halls
• Scrubs main floor surface • Disinfect public areas including entranceways, foyers & hallways • Washes & vaccums floors. • Revitalise floor surfaces
Food Processing
• Cleans floor surfaces, including hard to clean tile grout • Washes & vacuums exterior sidewalks, delivery and receiving docks
Engineering / Mechanical Plants
• Cleans floor surfaces, including hard to clean tile grout • Washes & vacuums exterior sidewalks, delivery and receiving docks
Page 3/8
For more info, click one of buttons on the right menu
For more info, click one of buttonson the right menu
How the Dupla Battery works
At the press of a button, liquid is dispensed from the extra large 18 litre clean solution tank (1) along the full length of all the 4 rotating cylindrical agitator brushes (2). This offset brush system allows cleaning right up to the edge of walls. Simultaneously, twin vacuum squeegees (3) lift the dirt filled liquid from the floor, while drying in the one process. The dirty water is then lifted to the 13 litre central recovery tank (4), which is easily lifted from the machine and emptied.
Page 5/8
For more info, click one of buttons on the right menu
Duplex Accessories
Transport Trolley
Steam Kit
Service Program
Duplex Brushes
Fix-It
Clean-It
Page 6/8
For more info, click one of buttons on the right menu
Cleaning in Action
Page 7/8
For more info, click one of buttons on the right menu
Technical Specs
Specifications
Dupla Battery
Width (mm)
500 mm
Height (mm)
380 mm
Length (mm)
690 mm
Weight empty (kg) (without battery)
37 kg
Battery weight
13 kg
Supplied Batteries
2
Clean solution capacity (litre)
14 lt
Recovery tank capacity (litre)
13 lt
Cylindrical brush diameter (mm)
117 mm
Cylindrical brush turns (Rpm)
864 rpm
Peripheral speed of brushes (mpm)
320 mpm
Noise Level (Db)
60 Db
Voltage (V)
24 DC
Frequency (Hz)
-
Brush Motor power (W)
400 W
Vacuum Power (W)
450 W
Theoretical working surface area (m2/h)
1500 m2/h
Page 8/8
