Duplex 340 Floor Scrubber PDF Print E-mail

Duplex 340 Floor Scrubber

What is a Duplex 340?

A Duplex 340 is a compact floor scrubber / washer / dryer that thoroughly cleans floors by simultaneously scrubbing, washing and extracting. The unique design of the Duplex 340 compact floor scrubber with offset brushes allows it to clean right to the edge of the walls and into the corners. This combined with the Duplex 340 floor cleaner's small compact size allows cleaning of the tightest and often neglected floor areas.

The Duplex 340 compact floor scrubber is the smallest model in the Duplex floor scrubber range and is  ideal for cleaning small to medium areas.

Cleaning has never been so easy!

340-cleaning-equipment

Specifically the Duplex 340 floor scrubber is commonly used in:

• Small Department Stores
• Age Care facilities
• Restaurants/Cafes
• Fitness Centres
• Contract Cleaners
• Community Centres
• Hospital / Medical Centres
• Veterinary Clinics

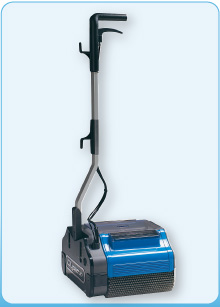

340 floor scrubber cleaning equipment
Request a Quote Book a Demo

Specialised cleaning on all types of Surfaces

The Duplex 340 compact floor cleaner is a simple and versatile solution for thorough cleaning and drying of all types of hard floors and short pile carpets. Our Duplex 340 compact commercial floor scrubber is an ideal solution for cleaning heavy and greasy stains with 100% saving on chemicals. The Duplex floor scrubber is unique in its ability to clean right up to the edge of skirting boards and into corners.

duplex-floor-types

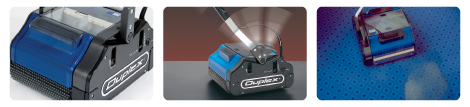

Unique Features of the Duplex 340


effective cleaning

Thorough & effective cleaning

Twin counter rotating brushes with 600,000 bristles moving at 650rpm

cleans to edge

Cleans to the very edge

The unique offset brush design and two way handle allows cleaning to the very edge

two way handle

Effective forwards and backwards

Carefully balanced design ensures that the Duplex is the only floor washer truly effective in forwards and backwards operation

one handed operation

Easy to Use - with only one hand

Just flick the switch and the Duplex comes alive, the Duplex is designed for single handed operation

adjustable height

Adjustable machine height

With a simple flick of a switch the Duplex adjusts its height to suit the different type of flooring.

brushes

Flexible

Choose from four brushes to suit the required flooring.

BLACK - Heavy Duty Scrubbing
GREY - Hard Floor &Short Carpet
YELLOW - Short/Medium Pile Carpet
BROWN - Horse Hair Brushing



How the Duplex Floor Scrubber Works

how duplex works

At the squeeze of the trigger, dual large capacity clean solution tanks (1) dispense liquid evenly along the full length of both agitator brushes (2)The twin converyors (3) simultaneously lift dirt solution from the brushes to a central recovery tank.  The duplex system replaces mops, buckets, scrubbers, polishers and carpet extractors with a single compact unit.  All tanks are easily accessible and removable to make filling emptying and cleaning simple and easy.


Technical Specs between the Duplex Floor Scrubber Range

Specifications

Duplex 340

Duplex 420

Duplex 620

Width (mm)

430 mm

430 mm

430 mm

Height (mm)

340 mm

420 mm

620 mm

Length (mm)

240 mm

240 mm

240 mm

Weight empty (kg)

22 kg

26 kg

36 kg

Clean solution capacity (litre)

4.2 lt

6 lt

9.5 lt

Recovery tank capacity (litre)

2.8 lt

3.5 lt

5.5 lt

Cylindrical brush diameter (mm)

100 mm

100 mm

100 mm

Cylindrical brush width (mm)

280 mm

350 mm

550 mm

Electrical induction motor tropicalised winding

Single-phase

Single-phase

Single-phase

Insulation class

Voltage (V)

220/240 V

220/240 V

220/240 V

Frequency (Hz)

50 Hz

50 Hz

50 Hz

Max power (W)

900 W

1000 W

1900 W

Pressure on floor (g/cm2)

195 g/cm2

185 g/cm2

160 g/cm2

Theoretical working surface area (m2/h)

180 m2/h

350 m2/h

550 m2/h


Contact Us today to arrange a obligation free test drive - Australia wide - of the Duplex 340 compact commercial floor cleaner.
