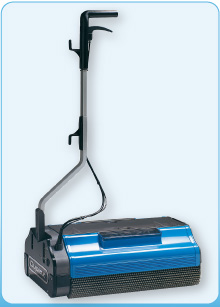

A Duplex 620 is a large floor scrubber that thoroughly cleans floors simultaneously washing, agitating and extracting in a single pass. At 620mm in width the Duplex 620 is the widest model in the Duplex floor scrubber range and is perfectly suited for efficient cleaning in large commercial facilities. Despite the large size this machine is incredibly easy to use and highly maneuvrable.
The Duplex 620 floor scrubber is packed full of features and best of all there is basically no set up time. Simply fill the two solution tanks with water, select the height setting, pull back the handle and start cleaning. It is that easy.
Most Versatile!
The Duplex 620 is ideal for use in large areas like:
• School Corridors
• Aged Care facilities
• Airport Terminals
• Hospital Corridors
• Sports Complexes
• Showrooms
• Supermarket Aisles
Page 1/8
* For more info, click one of buttons on the right menu *

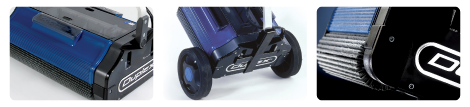

Unique Features of the Duplex 620
Thorough & effective cleaning
Twin counter rotating cylindrical brushes with 600,000 bristles moving at 650rpm provide exceptional cleaning power on many surfaces.
Effective forwards and backwards
Carefully balanced design ensures that the Duplex is the only floor washer truly effective in forwards and backwards operation.
Adjustable machine height
With a simple flick of a switch the Duplex 620 adjusts its height to suit the different type of flooring.
Cleans to the very edge
The unique offset brush design and two way handle of the Duplex 620 allows cleaning to the very edge of the wall.
Easy to Use - with only one hand
Just pull down the handle and the Duplex 620 comes alive providing easy feather light single handed operation.
Most Versatile
4 brush choices to suit different flooring:
BLACK - Heavy Duty Scrubbing GREY - Hard Floor &Short Carpet YELLOW - Short/Medium Pile Carpet BROWN - Horse Hair Brushing
Page 2/8
For more info, click one of buttons on the right menu
For more info, click one of buttonson the right menu
Applications for Duplex 620
Duplex has created the most simple and versatile solution for thorough cleaning and drying of all types of floors. Our Duplex 620 floor scrubber will give you the ideal solution for efficient and effective deep cleaning of hard floor or maintenance cleaning of carpets.
For more info, click one of buttonson the right menu
How the Duplex Floor Scrubber work
At the squeeze of the trigger, dual large capacity clean solution tanks (1) dispense liquid evenly along the full length of both agitator brushes (2). The twin converyors (3) simultaneously lift dirt solution from the brushes to a central recovery tank. All tanks are easily accessible and removable to make filling emptying and cleaning simple and easy.
Page 5/8
For more info, click one of buttons on the right menu
Duplex Accessories
Transport Trolley
Steam Kit (N/A)
Service Program
Duplex Brushes
Fix-It
Clean-It
Page 6/8
For more info, click one of buttons on the right menu
The Duplex 340/420/620 in Action
Page 7/8
For more info, click one of buttons on the right menu
Technical Specs Duplex 620
Specifications
Duplex 620
Width (mm)
620 mm
Length (mm)
430 mm
Height (mm)
240 mm
Weight empty (kg)
36 kg
Clean solution capacity (litre)
9.5 lt
Recovery tank capacity (litre)
5.5 lt
Cylindrical brush diameter (mm)
100 mm
Cylindrical brush width (mm)
550 rpm
Electrical induction motor tropicalised winding
Single - Phase
Insulation class
1º
Voltage (V)
220/240V
Frequency (Hz)
50 Hz
Max Power (W)
900 W
Pressure on floor (g/cm2)
160 g/cm2
Theoretical working surface area (m2/h)
550 m2/h
Page 8/8
For more info, click one of buttons on the right menu
