The Duplex Steam is a highly versatile floor cleaner that can be used to effectively and efficiently clean all types of floors in small or large areas. Using the power of dual cylinder brushes combined with 120ºC dry steam, the Duplex Steam thoroughly cleans floors by simultaneously scrubbing, steaming, washing, and extracting.
What makes Duplex Steam so effective?

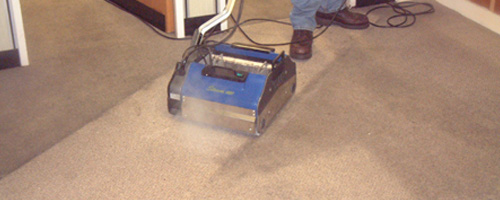

Ideal for Carpet: Using dry steam allows the Duplex Steam to penetrate deep into stains without over dampening the carpet fibres.
Great on Hard Floors: The dry steam with the water of the Duplex Steam can easily remove heavy and greasy stains on hard floors.
Time is Money: The Duplex Steam simultaneously steams, scrubs and dries floors in a single pass to reduce cleaning times.
Ease of Use: Single Handed operation in both forward and reverse - Surpasses Standards: The Duplex machine meets and surpasses the AS/NZS 3733 standards set for cleaning maintenance of residential and commercial carpeting.
The Duplex Steam is especially popular for carpet cleaning where carpet can not be left too wet such as:
• Healthcare • Aged Care • Hotels / Motels • Retail Stores • Restaurants / Bars • Function Centres • Medical Centres • Homes (by contractors)
Page 1/8
For more info, click one of buttons on the right menu
Unique Features of the Duplex Steam
Thorough & effective cleaning
Twin counter rotating cylindrical brushes with 600,000 bristles moving at 650rpm provide exceptional cleaning power on many surfaces
Effective forwards and backwards
Carefully balanced design ensures that the Duplex is the only floor washer truly effective in forwards and backwards operation
Adjustable machine height
With a simple flick of a switch the Duplex adjusts its height to suit the different type of flooring.
Cleans to the very edge
Unique offset brush system and two way handle allows cleaning to the very edge
Easy to Use - Single handed
Just flick the switch and the Duplex comes alive, the Duplex is designed for single handed operation
Flexible
4 brushes to suit different floors.
BLACK - Heavy Duty Scrubbing GREY - Hard Floor &Short Carpet YELLOW - Medium to Long Carpet BROWN - Horse Hair Brushing
Page 2/8
For more info, click one of buttons on the right menu
For more info, click one of buttonson the right menu
Applications for Duplex Steam
Duplex has created the most simple and versatile solution for thorough cleaning and drying of all types of floors. Our Duplex floor scrubber will give you the solution to clean heavy and greasy stains with 100% saving on chemicals. The Duplex is unique in its ability to clean right up to the edge of skirting boards and into corners.
For more info, click one of buttonson the right menu
How the Duplex Steam Floor Scrubber work
At the squeeze of the trigger, dual large capacity clean solution tanks (1) dispense liquid evenly along the full length of both agitator brushes (2). The twin converyors (3) simultaneously lift dirt solution from the brushes to a central recovery tank. The duplex system replaces mops, buckets, scrubbers, polishers and carpet extractors with a single compact unit. All tanks are easily accessible and removable to make filling emptying and cleaning simple and easy.
Cleans right to the edges and into the corners
The unique offset brush design combined with a two way handle actually allows cleaning right to the edge of the wall and into the corners in both directions
Page 5/8
For more info, click one of buttons on the right menu
Duplex Accessories
Transport Trolley
Steam Kit
Service Program
Duplex Brushes
Fix-It
Clean-It
Page 6/8
For more info, click one of buttons on the right menu

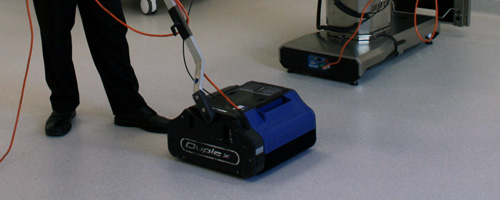

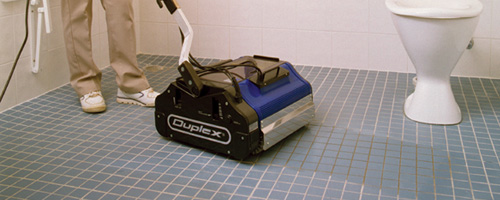

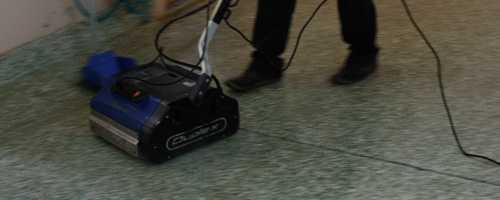

The Duplex Steam in Action
Page 7/8
For more info, click one of buttons on the right menu
Technical Specification of the Duplex Steam
Specifications
Duplex Steam
Width (mm)
420 mm
Length (mm)
430 mm
Height (mm)
240 mm
Weight empty (kg)
26 kg
Clean solution capacity (litre)
3 / 6 lt
Recovery tank capacity (litre)
3.5 lt
Cylindrical brush diameter (mm)
100 mm
Cylindrical brush width (mm)
350 rpm
Electrical induction motor tropicalised winding
Single - Phase
Insulation class
1º
Voltage (V)
220/240V
Frequency (Hz)
50 Hz
Max Power (W)
1000 W
Pressure on floor (g/cm2)
185 g/cm2
Theoretical working surface area (m2/h)
350 m2/h
Page 8/8
For more info, click one of buttons on the right menu
