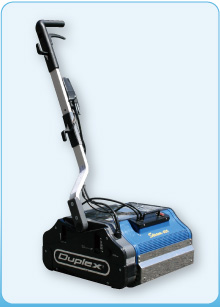

Duplex Steam Floor Scrubber |
 |
 |
 |
|
What is a Duplex Steam?
The Duplex Steam is an all-in-one Floor Cleaner that uses 120º Steam that scrubs and dries all hard floors & carpets. It thoroughly cleans floors by simultaneously washing, agitating and extracting.
What makes Duplex Steam so effective?
Ideal for Carpet: Using steam the Duplex can penetrate stains without over dampening the surface.
Extra Advantage on Hard Floors: The steam with the water distribution of the Duplex Steam can easily remove heavy and greasy stains on all types of flooring.
Time is Money: The Duplex Steam simultaneously steams, scrubs and dries in a single pass
Ease of Use: Single Handed operation in both forward and reverse - Surpasses Standards: The Duplex machine meets and surpasses the AS/NZS 3733 standards set for cleaning maintenance of residential and commercial carpeting.
 |
|
Specifically the Duplex Steam is used in facilities such as:
• Healthcare
• Age Care
• Schools
• Contract Cleaners
• Restaurants
• Community Centres
• Hospital / Medical Centres
• Supermarkets
|
|
|
|
Specialised cleaning on all types of Surfaces
Duplex has created the most simple and versatile solution for thorough cleaning and drying of all types of floors. Our Duplex floor scrubber will give you the solution to clean heavy and greasy stains with 100% saving on chemicals. The Duplex is unique in its ability to clean right up to the edge of skirting boards and into corners.
Unique Features of the Duplex Steam
 |
Thorough and effective cleaning
Twin counter rotating brushes with 600,000 bristles moving at 650rpm
|
 |
Unique offset brush system and two way handle allows cleaning to the very edge
|
 |
Effective forwards and backwards
Carefully balanced design ensures that the Duplex is the only floor washer truly effective in forwards and backwards operation
|
 |
Easy to Use - with only one hand
Just flick the switch and the Duplex comes alive, the Duplex is designed for single handed operation
|
 |
Adjustable machine height
With a simple flick of a switch the Duplex adjusts its height to suit the different type of flooring.
|
 |
Choose from four brushes to suit the required flooring.
BLACK - Heavy Duty Scrubbing
GREY - Hard Floor &Short Carpet
YELLOW - Medium to Long Carpet
BROWN - Horse Hair Brushing
|
How the Duplex Floor Scrubber Works
 |
|
At the squeeze of the trigger, dual large capacity clean solution tanks (1) dispense liquid evenly along the full length of both agitator brushes (2). The twin converyors (3) simultaneously lift dirt solution from the brushes to a central recovery tank. The duplex system replaces mops, buckets, scrubbers, polishers and carpet extractors with a single compact unit. All tanks are easily accessible and removable to make filling emptying and cleaning simple and easy.
|
Technical Specification of the Duplex Steam
| Width (mm) |
430 mm |
430 mm |
| Height (mm) |
340 mm |
420 mm |
| Length (mm) |
240 mm |
240 mm |
| Weight empty (kg) |
22 kg |
26 kg |
| Clean solution capacity (litre) |
4.2 lt |
6 lt |
| Recovery tank capacity (litre) |
2.8 lt |
3.5 lt |
| Cylindrical brush diameter (mm) |
100 mm |
100 mm |
| Cylindrical brush width (mm) |
280 mm |
350 mm |
| Electrical induction motor tropicalised winding |
Single-phase |
Single-phase |
| Insulation class |
1º |
1º |
| Voltage (V) |
220/240 V |
220/240 V |
| Frequency (Hz) |
50 Hz |
50 Hz |
| Max power (W) |
900 W |
1000 W |
| Pressure on floor (g/cm2) |
195 g/cm2 |
185 g/cm2 |
| Theoretical working surface area (m2/h) |
180 m2/h |
350 m2/h |
Contact Us today to arrange a obligation free test drive - Australia wide - of the Duplex Steam
|
|
|
